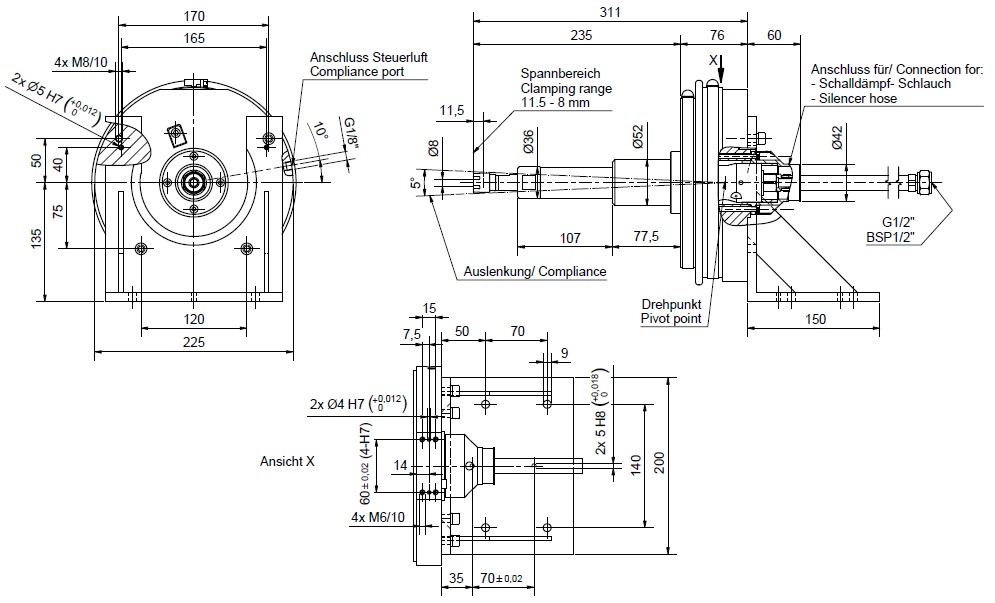

Flexicut 1040
Article-No. | 3340.310 |
Power | 1.3 kW (1.74 hp) |
Idling speed | 25'000 rpm |
Rated speed | 20'000 rpm |
Compliance radial in all directions | ± 5° / ± 22 mm (at collet) |
Compliance torque | 71 Nm (52.3 ft lbs) at 6 bar (87 psi) |
Compliance force | 250 N (56.2 lbs) at 6 bar (87 psi) (at collet) |
Feed forward rate | 10 - 300 mm/sec. |
Air consumption | 22 l/s (46.6 cfm) |
Collet | Ø 8 mm, 5/16 |
Weight | 18.2 kg (26.5 lb) |
