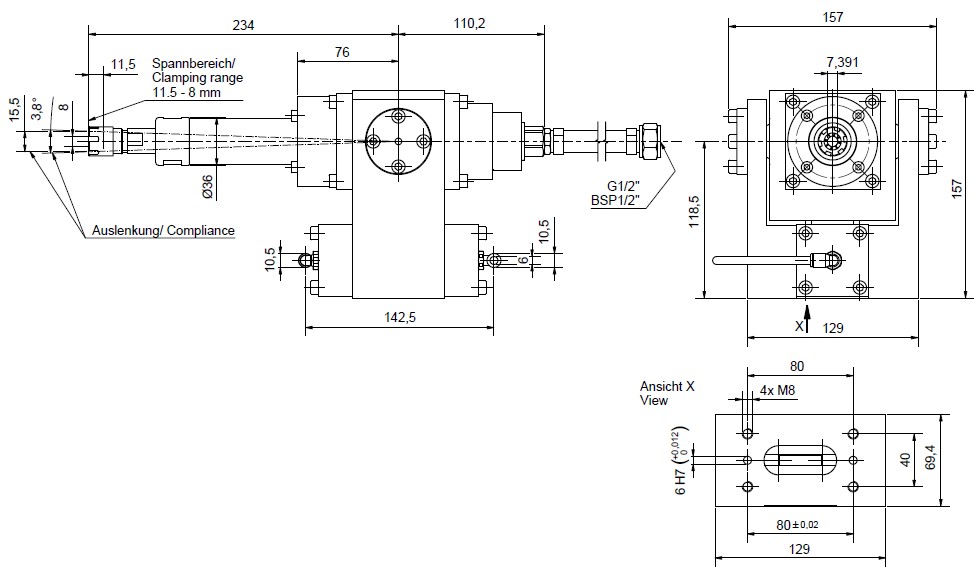

Swingcut 1000
Article-No. | 3120.311 |
Power | 1.3 kW (1.74 hp) |
Idling speed | 25'000 rpm |
Rated speed | 20'000 rpm |
Compliance radial in two directions | ± 3.8° / ± 15 mm (at collet) |
Compliance toque | 16.6 Nm (12.2 ft lbs) bei 6 bar (87 psi) |
Compliance force | 72 N (16.2 lbs) at 6 bar (87 psi) (at collet) |
Feed forward rate | 10 - 300 mm/sec. |
Air consumption | 22 l/s (46.6 cfm) |
Collet | Ø 8 mm, 5/16 |
Weight | 7.6 kg (16.8 lb) |
