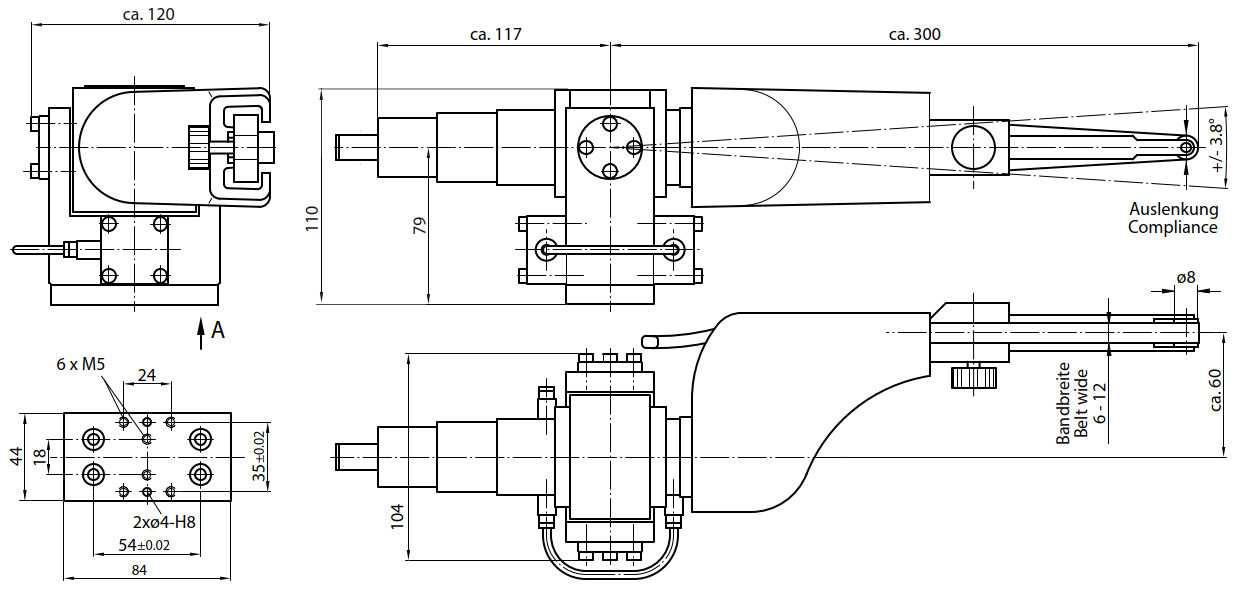

Swinbelt 100
Article-No.
1110.200
Rotations per min
20'000
Belt speed
31 m/s (at belt thickness of 1mm)
Belt length
610 mm
Max. Belt width
12 mm
Compliance pendulous in two directions
± 3.8° / ± 8.5 mm (at belt tip)
Compliance torque
2.4 Nm at 6 bar
Feed forward rate
5 - 100 mm/s
Air consumption
8.3 l/s (17.7 cfm)
Weight
2.2 kg
