ATICS 200
TECHNICAL DATA
Max. Torque
10 Nm
Max. Speed
18'000 rpm
Max. Collet diameter
Ø 10 mm
Unlocking force
approx. 70 N
Weight
0.72 kg

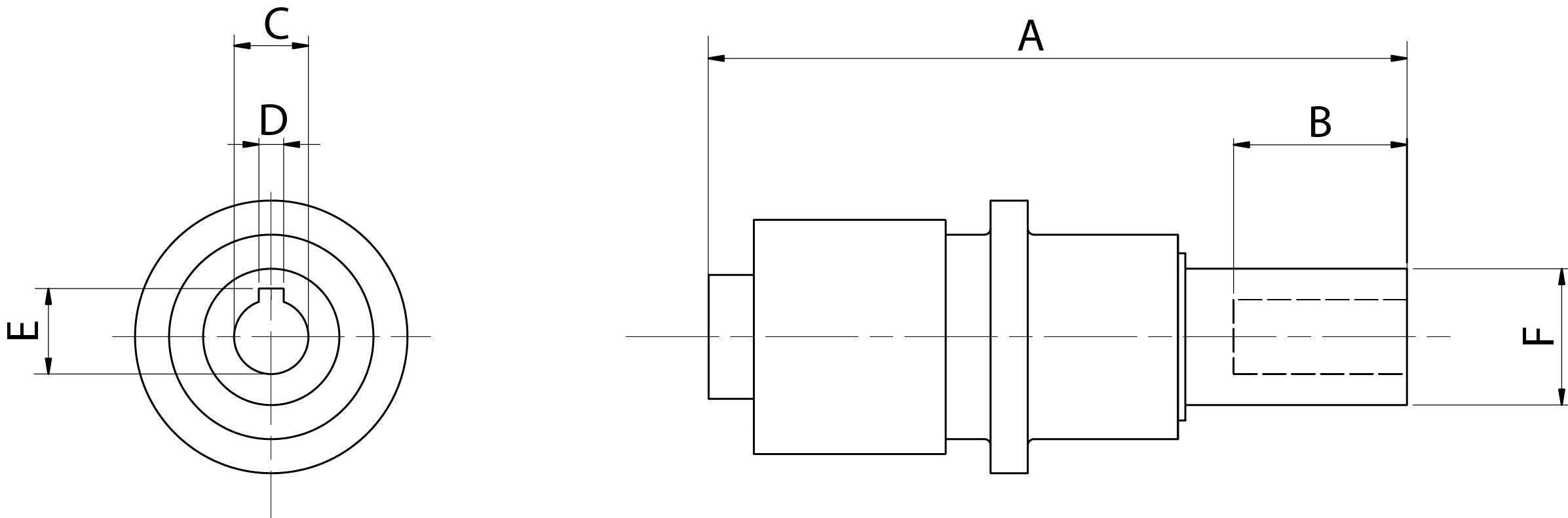

QUICK CHANGE CHUCK
Art. No.
A
B
C
D
E
F
1250.201
128
42
16G7
5H9
18.3 +0.1
26
1250.202
114
28
12G7
4H9
13.8 +0.1
22

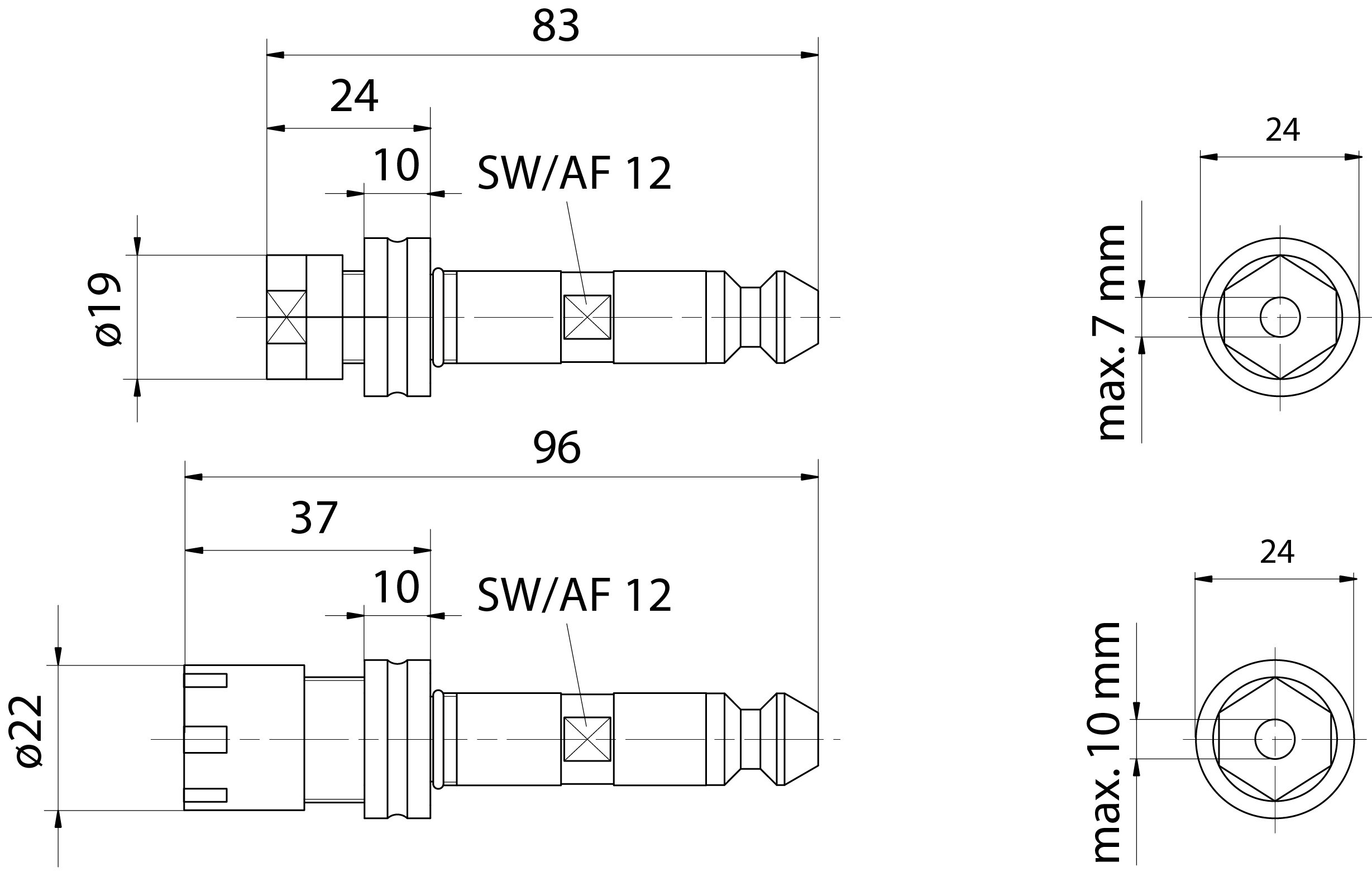

QUICK CHANGE ADAPTER
Art.No. 1260.200   with collet 6 mm

Art.No. 1260.210   with collet 8 mm


TOOL DOCK - T
Art.No. 1239.200   without sensor

Art.No. 1239.210   with sensor

TOOL DOCK - P
Art.No. 1241.200   without sensor

Art.No. 1241.210   with sensor

UNLOCKING FORK
Art.No. 1236.200

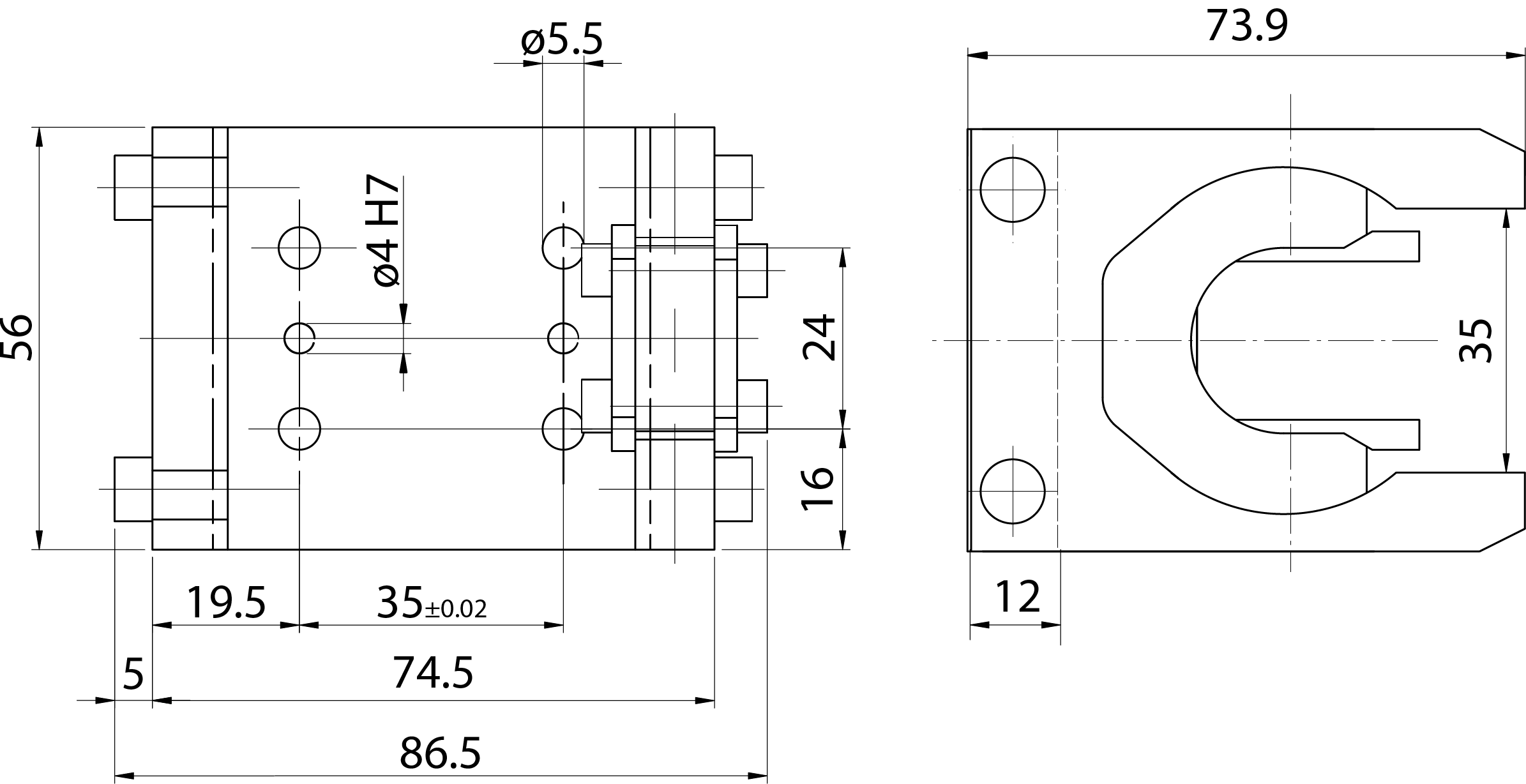

CHANGING DEVICE
Art.No. 1235.200

LOCKING MONITORING
Art.No. 5139.200
